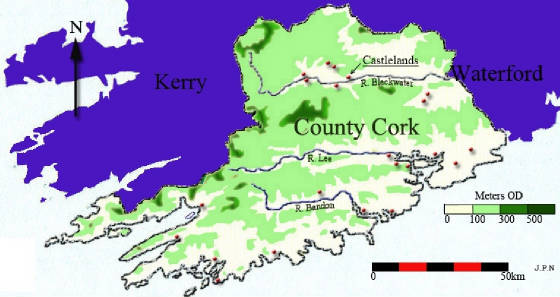

FortifiedHousesDistributionMapCastlelandsJoeNunan

Castlelands Fortified House

OS 33: 6: 4; OD 150-210ft. North county Cork.
Castlelands is a fortified house on a limestone outcrop overlooking the river Blackwater; the river is located to the south.  It is a rectangular three storey house (internal - 25m north-south and 8m east-west), with four storey towers projecting from the northwest and the southwest corners and from the centre front and rear walls.  The former are polygonal in plan and the latter have straight sides and pointed fronts.  The entrance is through two ground floor doorways, located in the central projection and in the main west wall within the central projection.  The interior is divided by a cross-wall and the house had wooden floors throughout, indicated by a line of joist sockets.  The floors were well-lit by many rectangular windows. The windows within the main block were divided by mullion and transom light divisions.  The northwest corner-tower contained a spiral (possibly) wooden stairs and there may also have been stairs in the central east tower which has a possible collapsed garderobe (or chimney flue) shaft.  The house was defended by numerous gun loops with stirrup openings; many are located on the main west and north walls and in the northwest and southwest corner-towers; the loops are positioned directly under or near windows.  The other two sides of house (south gable and east wall) have few loops, probably because they face out into the bawn and because much of the original outer face of the south and north-east of the building is now missing.  There are many fireplaces, all in poor condition; they are found on numerous floors and levels.  A ground and a first floor door, both, located close to the east end of the south wall access a lean-to extension (6.5m north-south and 9m east-west), this building originally stood to three storeys, the walls are now reduced to ground level, it houses a large fireplace within its north wall.  There are doorways inserted into the walls of the corner-tower, one above the other. The main block also contained a semi-basement immediately north of the stone cross-wall.  The house was possibly built by Sir Thomas Norris who died in 1599.
;-)

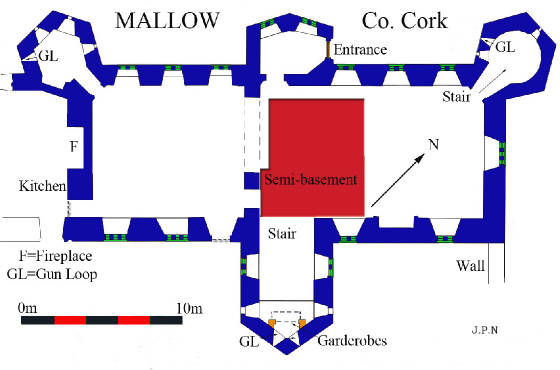

MallowYplanjoenunan

Field Walking Photography

Fortified11/CASTLELANDS90JOENUNAN.JPG Fortified11/Castlelands85joenunan.JPG Fortified11/Castlelands84joenunan.JPG Fortified11/Castlelands83joenunan.JPG
Fortified11/Castlelands82joenunan.JPG Fortified11/Castlelands81joenunan.JPG Fortified11/Castlelands80joenunan.JPG Fortified11/Castlelands79joenunan.JPG
Fortified11/Castlelands78joenunan.JPG Fortified11/Castlelands77joenunan.JPG Fortified11/Castlelands76joenunan.JPG Fortified11/Castlelands75joenunan.JPG
Fortified11/Castlelands74joenunan.JPG Fortified11/Castlelands73joenunan.JPG Fortified11/Castlelands72joenunan.JPG Fortified11/Castlelands70joenunan.JPG
Fortified11/Castlelands69joenunan.JPG Fortified11/Castlelands68joenunan.JPG Fortified11/Castlelands71joenunan.JPG Fortified11/Castlelands66joenunan.JPG
Fortified11/Castlelands65joenunan.JPG Fortified11/Castlelands64joenunan.JPG Fortified11/Castlelands63joenunan.JPG Fortified11/Castlelands62joenunan.JPG
Fortified11/Castlelands61joenunan.JPG Fortified11/Castlelands60joenunan.JPG Fortified11/Castlelands59joenunan.JPG Fortified11/Castlelands58joenunan.JPG
Fortified11/Castlelands57joenunan.JPG Fortified11/Castlelands56joenunan.JPG Fortified11/Castlelands55joenunan.JPG Fortified11/Castlelands54joenunan.JPG
Fortified11/Castlelands53joenunan.JPG Fortified11/Castlelands52joenunan.JPG Fortified11/Castlelands51joenunan.JPG Fortified11/Castlelands50joenunan.JPG
Fortified11/Castlelands49joenunan.JPG Fortified11/Castlelands48joenunan.JPG Fortified11/Castlelands47joenunan.JPG Fortified11/Castlelands46joenunan.JPG
Fortified11/Castlelands45joenunan.JPG Fortified11/Castlelands44joenunan.JPG Fortified11/Castlelands43joenunan.JPG Fortified11/Castlelands42joenunan.JPG
Fortified11/Castlelands41joenunan.JPG Fortified11/Castlelands40joenunan.JPG Fortified11/Castlelands39joenunan.JPG Fortified11/Castlelands38joenunan.JPG
Fortified11/Castlelands37joenunan.JPG Fortified11/Castlelands36joenunan.JPG Fortified11/Castlelands35joenunan.JPG Fortified11/Castlelands34joenunan.JPG
Fortified11/Castlelands33joenunan.JPG Fortified11/Castlelands32joenunan.JPG Fortified11/Castlelands31joenunan.JPG Fortified11/Castlelands30joenunan.JPG
Fortified11/Castlelands29joenunan.JPG Fortified11/Castlelands28joenunan.JPG Fortified11/Castlelands27joenunan.JPG Fortified11/Castlelands26joenunan.JPG
Fortified11/Castlelands25joenunan.JPG Fortified11/Castlelands24joenunan.JPG Fortified11/Castlelands23joenunan.JPG Fortified11/Castlelands22joenunan.JPG
Fortified11/Castlelands21joenunan.JPG Fortified11/Castlelands20joenunan.JPG Fortified11/Castlelands19joenunan.JPG Fortified11/Castlelands18joenunan.JPG
Fortified11/Castlelands17joenunan.JPG Fortified11/Castlelands16joenunan.JPG Fortified11/Castlelands15joenunan.JPG Fortified11/Castlelands14joenunan.JPG
Fortified11/Castlelands13joenunan.JPG Fortified11/Castlelands12joenunan.JPG Fortified11/Castlelands11joenunan.JPG Fortified11/Castlelands10joenunan.JPG
Fortified11/Castlelands9joenunan.JPG Fortified11/Castlelands8joenunan.JPG Fortified11/Castlelands7joenunan.JPG Fortified11/Castlelands6joenunan.JPG
Fortified11/Castlelands5joenunan.JPG Fortified11/Castlelands4joenunan.JPG Fortified11/Castlelands3joenunan.JPG Fortified11/Castlelands2joenunan.JPG
Fortified11/Castlelands1joenunan.JPG

The Fortified House - Main elements

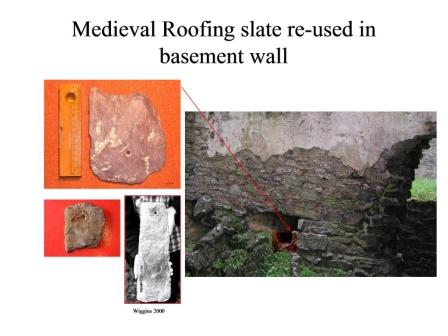

roofingmaterialjoenunan
